Enables charging of your electric vehicle at your home or office premises.- Can be used to charge all electric automobiles (bikes, scooters, rickshaws, tractors and cars) using standard 230 Voltage, single phase AC supply.
- Suitable for all available plug-in type electric vehicle charging cables.
- Protects users and equipment against electric shocks, over-load & short circuit in the incoming supply.
- Provides power through either a standard Domestic 6/16 Amps 3 pin plug or an industrial 16 Amps plug.
IEC to Domestic Socket Adaptor
EV Charging Harness
EV Charge Port Inlet – Male
EV Input Charging Cable - Female
EV Charge Port Inlet – Female

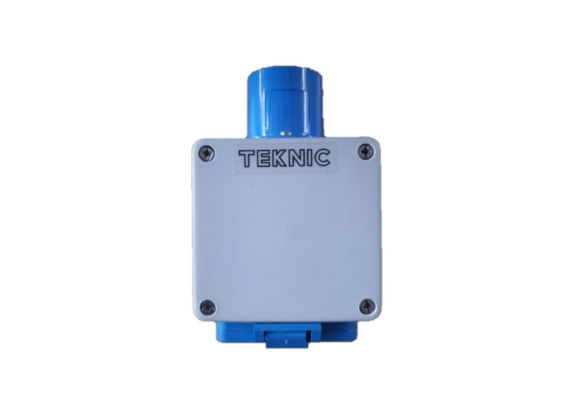

IEC to Domestic Socket Adaptor
- A versatile electric adaptor inlet for commercial & domestic usage.
- Can charge using standard 230 Voltage, single phase AC supply.
- Provides power through either a standard Domestic 6/16 Amps 3 pin plug to an industrial 16 Amps plug.

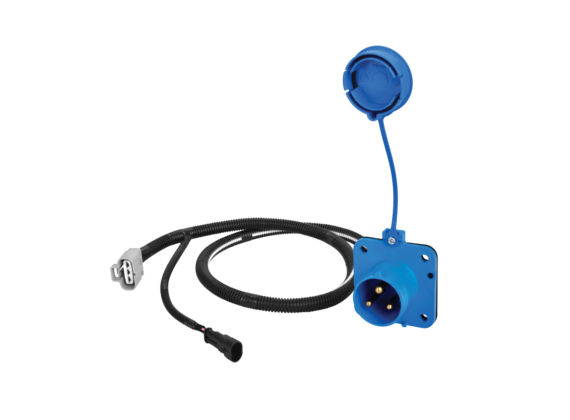

EV Charging Harness
- The vehicle side assembly consists of the Charging Socket & the Harness connected to the Charger inside the car, & serves as the charging point for the vehicle.
- The charging side assembly connects to the main inlet power supply 230 VAC on one side, and through the RCD unit supplies power to the vehicle by the vehicle side connecting plug.
- As per customer requirements we can provide different types of plugs - 16 A domestic Plug, 16 A IP 44 Plugs & 16 A IP 67 Plugs conforming to IEC 60309 standards.
- The standard Plugs are FEMALE TYPE closed end plugs, with minimum IP 54 & a maximum up to IP 67 degree of protection and conforms to IEC 60309 standards.

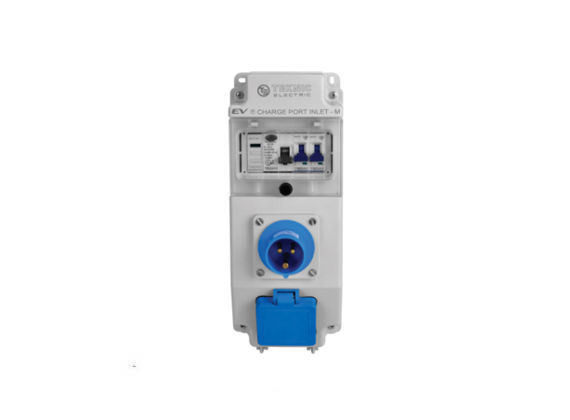

EV Charge Port Inlet – Male
- A versatile electric charging inlet for both commercial & domestic usage.
- Unique Space saving design & ready to install.
- Enables charging of your electric vehicle at your home or office premises.
- Can be used to charge all electric automobiles (bikes, scooters, rickshaws, tractors and cars). Suitable for all available plug-in type electric vehicle charging cables

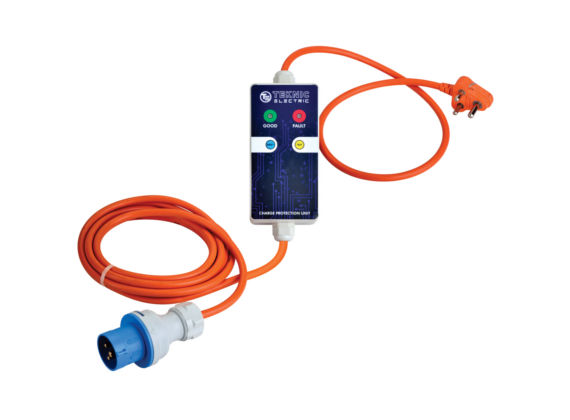

EV Input Charging Cable - Female
- A versatile electric charging cable for both commercial & domestic usage.
- Unique Space saving design & ready to install.
- Enables charging of your electric vehicle at your home or office premises.
- Can charge electric vehicles using standard 110 Voltage, single phase AC supply.

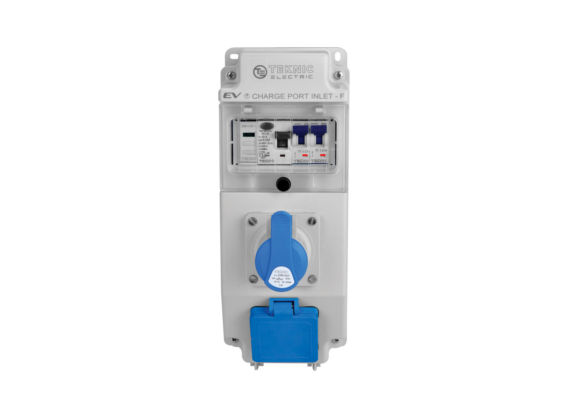

EV Charge Port Inlet – Female
- A versatile electric charging inlet for both commercial & domestic usage.
- Unique Space saving design & ready to install.
- Enables charging of your electric vehicle at your home or office premises.
- Can be used to charge all electric automobiles (bikes, scooters, rickshaws, tractors and cars). Suitable for all available plug-in type electric vehicle charging cables.
