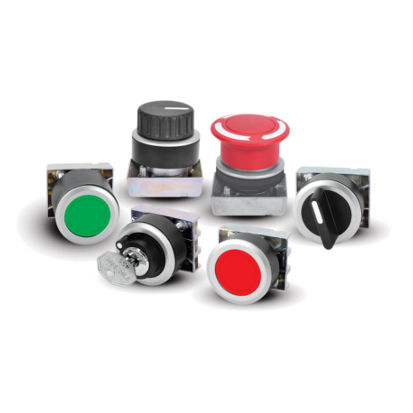

Illuminated & Non-Illuminated flush mounted round metal series Push Buttons & Pilot Lights
- Aesthetically elegant
- Applicable for Locomotive Motorman Cabins, Machine tool & Control panels
- All Plastic raw material F1 UV stabilized as per UL746C
- HL3-R26 as per BS EN 45545-2 fire protection
- Degree of protection: IP 65 as per IEC 60529; NEMA 4X, 12
- Safe, Reliable & Rugged in Construction
- Compact design & quick installation
Push Button
Selector Switches
Mushroom Acutators
Pilot Light
Contact Element
Blind Plug

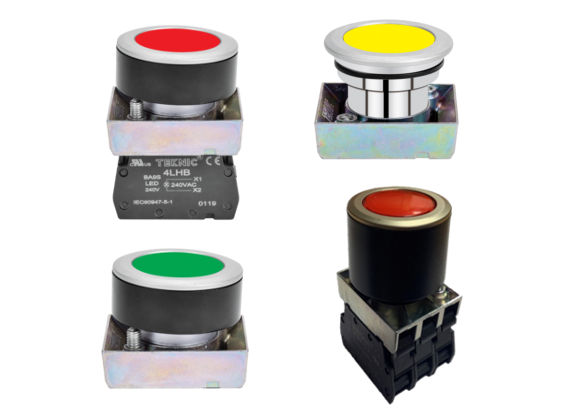

Push Button
- Flush mounting Push Button in Illuminated & Non-Illuminated series
- Available in 7 colours – White, Green, Red, Amber, Blue, Clear, Yellow
- Degree of Protection: IP 65 as per IEC 60529
- Can be used for Elevator Function

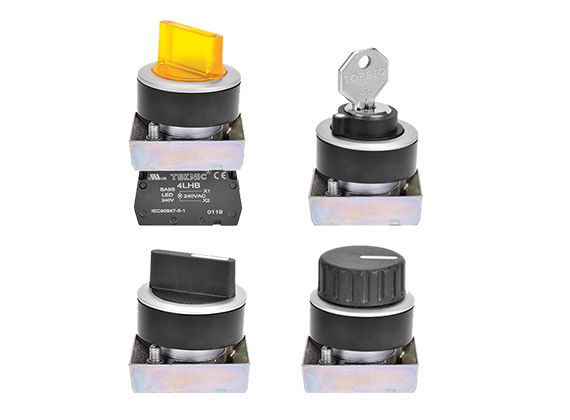

Selector Switches
- Ø30.5 FMR Series Metallic Illuminated & Non-Illuminated Selector Switch / Key Switch
- Selector switches available with 2 Position & 3 Position
- Degree of Protection: IP 65 as per IEC 60529
- Illuminated Selector Switches available in 7 colours – White, Green, Red, Amber, Blue, Clear, Yellow

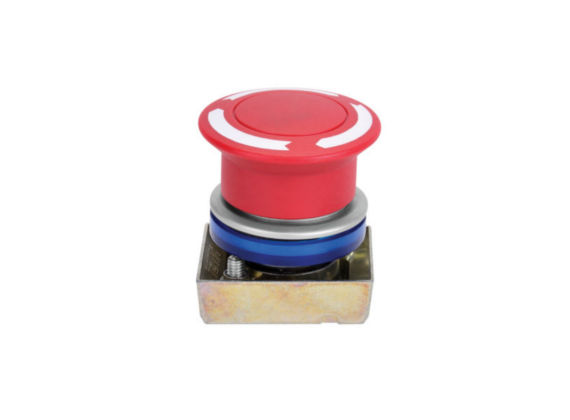

Mushroom Actuators
- Ø30.5 FMR Series Mushroom Push Button
- Can be used for Elevator Function
- Degree of Protection: IP 65 as per IEC 60529
Pilot Light - Ø30.5 FMR Series Metallic Pilot Light with LED bulb
- Ø30.5 FMR Series Metallic Pilot Light with LED bulb
- Available in variety of colours – White, Black, Green, Red, Amber, Blue, Clear, Yellow
- Can be used for Elevator Function
- Degree of Protection: IP 65 as per IEC 60529

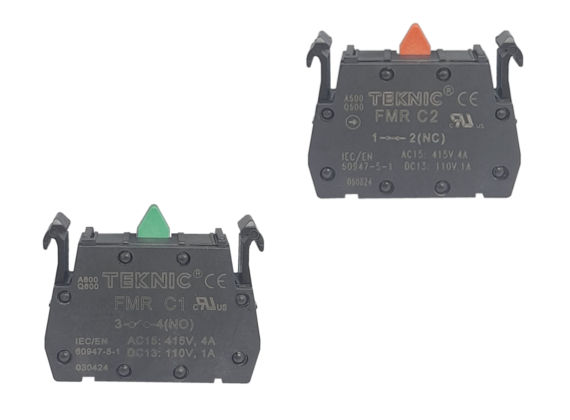

Contact Element
- FMR Series Clip on Contact element, Normally Open & Normally Closed Panel mounting screw & captive clamp connection
- Simple to fix & Safe operation
- Good flame resistance
- Shrouded Terminals & Long life
- Direct Opening

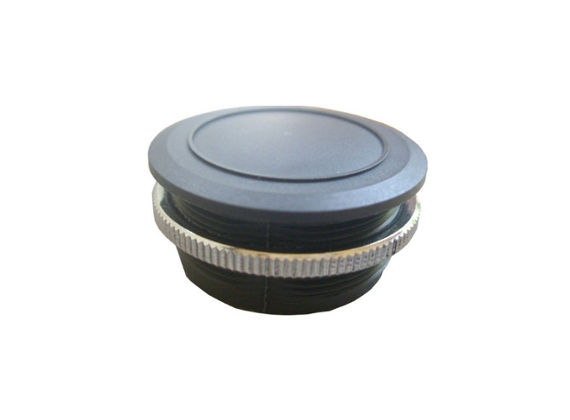

FMR Series Blind Plug
- Quick installation
- Used to cover Ø30.5mm holes
- IP65 protection
- Can be used for a panel thickness 1mm to 6mm
